H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty

  • H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty
  • H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty
  • H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty
  • H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty
Lugar de origen Zhangjiagang, China
Nombre de la marca HD Boiler
Certificación ISO9001,ASME,,EN,CE
Número de modelo Ahorrador
Cantidad de orden mínima 1
Precio $1,500

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Tipo Circulación natural Estructura Tubos de fuego y de agua
Presión Bajo/de alta presión Producción de vapor Max. 20 t/h
Estilo Vertical Combustible Carbón / Gas / Carbón / Calor de agua
Producción Agua caliente/vapor Tratamiento superficial Pintado
Material Acero de aleación, acero al carbono, SA210C, SA213T22 Estándar de material ASTM, EN o ISO
Rango de peso 10 toneladas a 1000 toneladas Proceso de fusión El valor de las emisiones de gases de efecto invernadero
Proceso Material-> lingot-> caliente/fría-rolación-> tratamiento térmico-> inspección-> mecan Estándar de UT ASTM A388 o EN10228
Tratamiento térmico Normalización+ templado
Resaltar

Max. 20t/h Steam Production Boiler Economizer

,

1 Year Warranty H Type Fin Tube

,

5 Years Core Components Warranty Boiler Economizer
Deja un mensaje
Descripción de producto
Heat Exchanger Module H Type Fin Tube Boiler Economiser ASME Standard Power Plant
H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty 0
Product Overview

High-efficiency boiler economizer designed as ship spare parts exhaust gas economizer, manufactured to ASME standards for power plant applications.

Introduction

Boiler economizers are heat exchange devices with finned tubes that heat liquids (typically water) without exceeding the liquid's boiling point. We manufacture three types of boiler economizers:

  • Bare tube economizer
  • H finned tube economizer
  • Spiral finned tube economizer

The H-finned tube economizer is a high-efficiency heat exchanger consisting of H-finned tubes. Compared to bare tube economizers, H-finned tube economizers offer:

  • Larger heat exchange area with fewer tubes
  • Increased flue gas flow area to reduce flow speed and abrasion
  • Option for double H finned tubes with high rigidity for long tube rows

The spiral finned economizer features newly designed heat transfer equipment with spiral fin tubes to overcome abrasion issues and extend service life.

Function

The economizer reduces cooling costs by allowing compressor shutdown while maintaining adequate cooling, resulting in significant energy savings.

Specifications
Description Boiler economizer
Material Alloy steel, Carbon steel, SA210C, SA213T22, etc.
Material standard ASTM, EN or ISO etc.
Dimension Customization
Weight Min: 10 ton Max.:1000 ton
Smelting Process EF+LF + VD
Process Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard ASTM A388 or EN10228, etc
Quality Control
  • Impact test and Strength calculation report with applied materials information
  • 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
  • X-ray, γ-ray and liquid penetrant test inspection report (welding seam)
  • Hydraulic test report to ensure standard working pressure and safety
Product Images

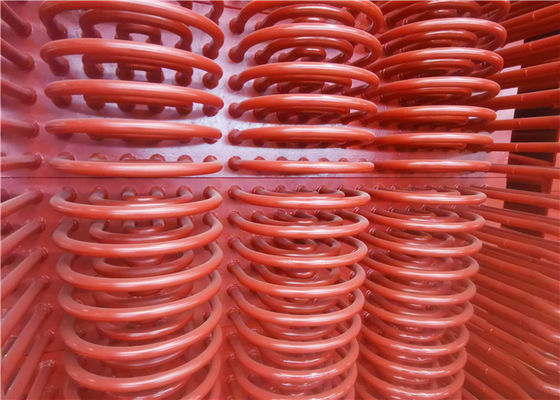

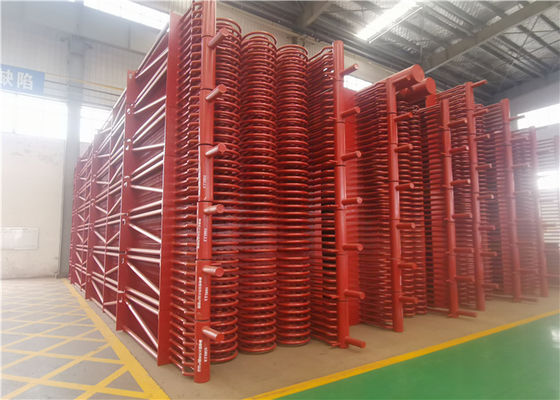

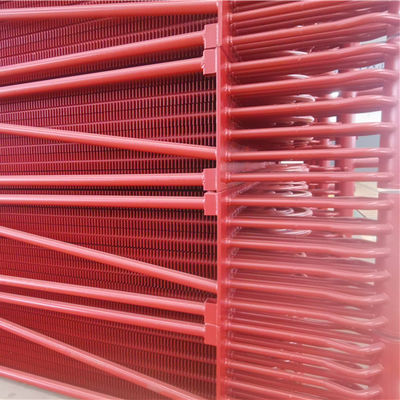

H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty 1
Company Information
H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty 2
Certifications
H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty 3
Packaging & Shipping
H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty 4
